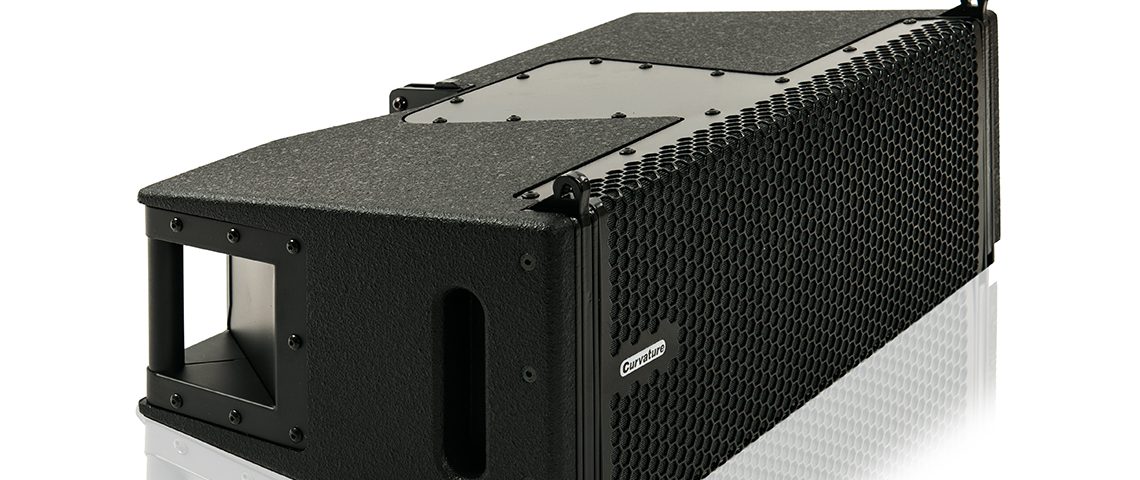

Coherence 8 is a symmetrical three-way biamplified compact line array designed to provide high sound quality and intelligibility in small to medium-sized spaces

Its rigging system allows a maximum array of 16 boxes to cover large spaces or where high sound pressure levels are required

It is possible to mount a close or rear array of Coherence 18 to achieve a low frequency increase in large spaces

Very fast transport and rigging system for flying or stacking. EASE Focus simulation software

    • Neodymium driver for coaxial double diaphragm media / treble
    • Dual 8 “high excursion speaker and very low distortion with low carbon fiber diaphragm
    • Symmetrical design
    • High power capacity
    • Horizontal dispersion variable of 80º, 110º or asymmetric
    • Vertical dispersion from 0º to 10º adjustable in steps of 1º
    • High sound quality
    • Integrated rigging system
    • Extension in bass using low COHERENCE-18 (35-200hz)
    • Extension at very low frequency using sub COHERENCE-18 (25-90hz)
    • Lab Gruppen PLM / Lake amplification
  • Frecuency Response: 55 Hz – 22 kHz (-3 dB)
    Power Handling: LF 500W AES / 2000W Peak
    MF 150W AES / 2000W Peak
    HF 80W AES / 400W Peak
    Sensitivity Low (1W/1M): 97 dB
    Sensitivity Mid/H (1W/1M): 112 dB
    Max. SPL Peak low (+6dB): 133 dB
    Max. SPL Peak mid/high (+6dB): 142 dB
    Dispersión Horizontal: 110°, 80° 0 100° (55° + 40° o 40° + 55°)
    Dispersion Vertical: 0°-10° en pasos de  1°
    Low Frecuency: 2x 8” neodymium, 2” (50.8 mm), 250 W (AES)
    Mid/High Frecuency: 8” coaxial neodymium Planar-wave-driver
    Mid: 3.5” (90 mm), 150 W (AES)
    Hi: 1.75” (44.4 mm), 80 W (AES)
    Crossover: 600 Hz bi-amp 6.300 Hz passive
    Input Connections: 2 x Neutrik™ NL4
    Nominal Impedance LF / MF+ HF: 16 Ohm (1+/1-) / 16 Ohm (+2/-2)
    Dimensions : 660 x 242 x 360
    Weight: 24 kg
